To bring stabilization to boats as small as 23 feet,
we knew we had to break the mold. The new
Seakeeper 1 features a flush mount design for
easier installation, runs exclusively on 12V DC power,
and can be installed virtually anywhere on board.
~ 23' - 30'
~ 30' - 36'
~ 35' - 41'
~ 38' - 44'
~ 40' - 46'
~ 42' - 48'
~ 44' - 52'
~ 50' - 59'
~ 60' - 75'
~ 70' - 85'
~ 85' +
The optional Seakeeper 1 Deck Mount Enclosure enables the Seakeeper 1 to be installed in a non-enclosed space. Without the optional enclosure, the Seakeeper 1 needs to be installed in a covered location (e.g. in an enclosed leaning post, bilge, or console) to protect it from salt, water, and sun. Now, boats with open-framed leaning posts can have Seakeeper stabilization.
$1,800
Find a Dealer
No one knows more about how you boat than you! Enter your boat information and we will guide you through the options so you can decide which Seakeeper is right for you.
| Weight | 365 lbs (165 kg) |

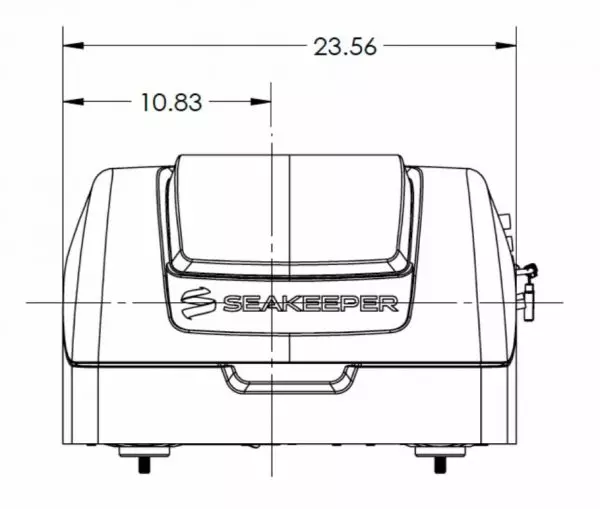

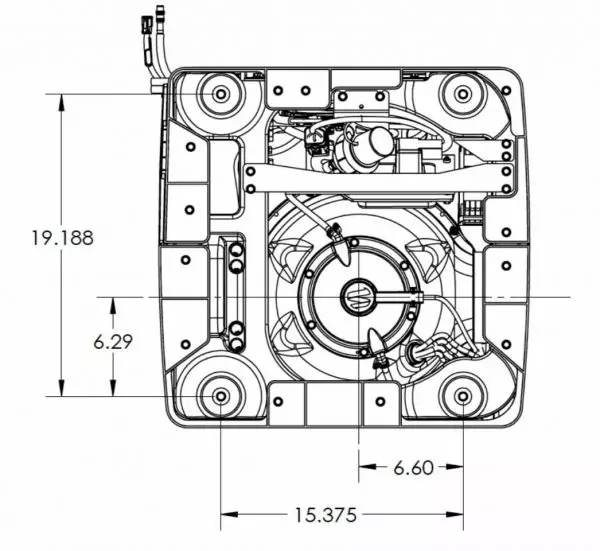

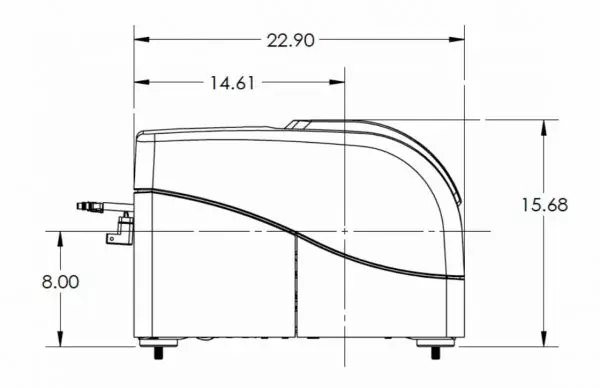

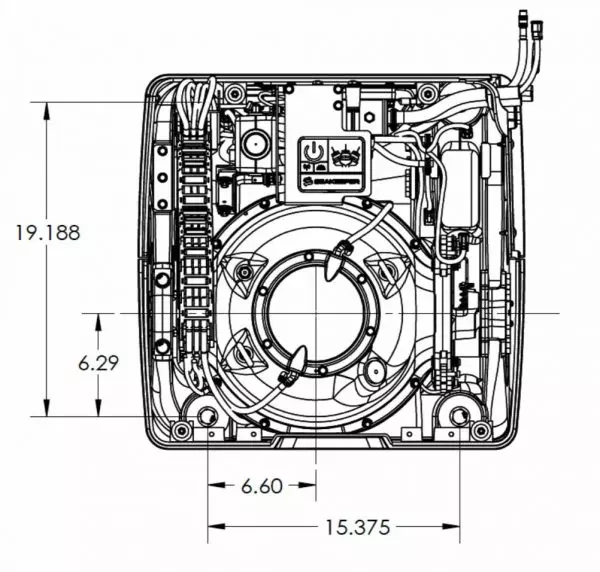

| Dimensions | 22.9 L x 23.6 W x 15.9 H (inches) |
| 0.582 L x 0.598 W x 0.403 H (meters) |
Our patented cooling system allows the flywheel to spin at an extremely high rate of speed, providing ultimate performance in the smallest and lightest package possible.
Seakeeper’s vacuum encapsulation enables the flywheel to spin roughly three times faster, cuts flywheel weight by two-thirds and halves power requirements. Moreover, because the critical components (flywheel, bearings, and motor) are sealed in a vacuum, they are isolated from the marine environment.
Seakeeper’s active control optimizes gyro torque, providing an unsurpassed level of performance. Unlike a passively controlled gyro, which must be turned off in the roughest conditions and/or at higher speeds, the Seakeeper is effective at all speeds and can be used in all sea conditions.
Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.
| Max Rated Speed | 9,750 RPM |
| Angular Momentum at Max Rated RPM | 1,000 N-M-S |
| Max Anti-Rolling Torque at Max Rated RPM | 2,620 N-M |
| Spool-up Time to Max Rated RPM | 35 minutes (9,750 RPM) |
| Spool-up Time to Stabilization | 18 minutes (7,310 RPM) |
| Power Consumption | |
| Spool-Up Power | 600 Watts Max @ 12 VDC |
| Spool-Up Power Input | 55 Amps |
| Operating Power | 225 - 600 Watts (Sea State Dependent) |
| DC Power Input | 12 VDC @ 20-55 Amps |
| Control Power | N/A |
| Control Power Input | N/A |
| Seawater Pump Power Input Over Current Protection based on installed pump rating |
12 VDC @ 15 Amps Max |
| Weight | 365 lbs (166 kg) |
| Envelope Dimensions | 22.9 L x 23.6 W x 15.9 H (Inches) 0.582 L x 0.598 W x 0.403 H (meters) |
| Noise Output | <64 dBC at 1 meter |
| Seawater Supply to Heat Exchanger | 2 GPM (7.6 LPM) minimum
4 GPM (15.1 LPM) maximum |
| Ambient Air Temperature | 32° - 140° F (0° - 60° C) |
To ensure peace of mind, all Seakeeper products come
with a multi-year factory warranty
