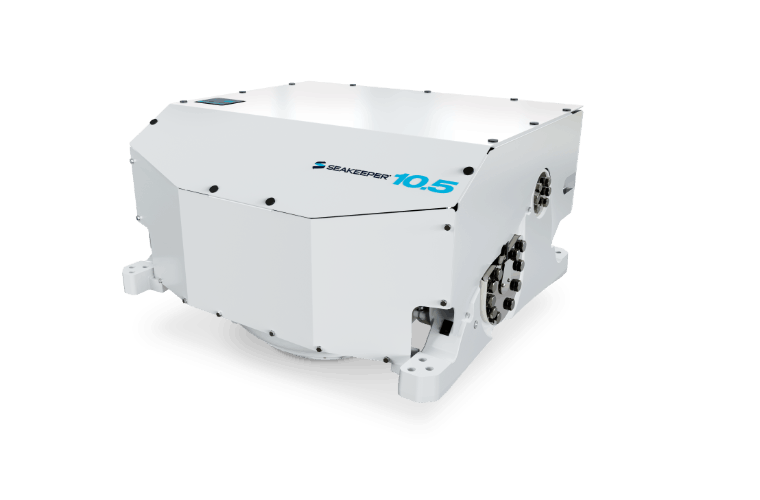

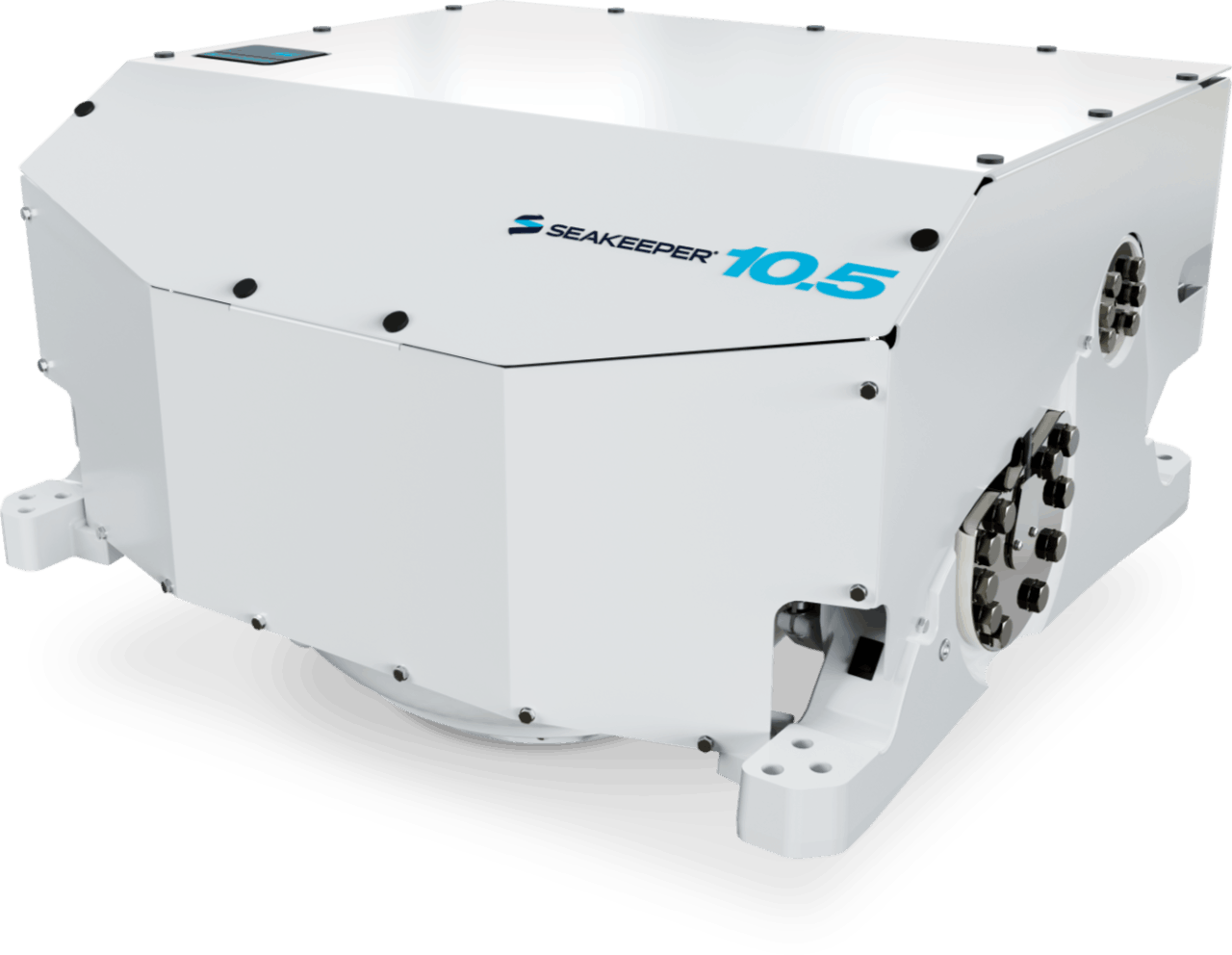

Seakeeper 10.5
The Seakeeper 10.5 marks a noticeable advancement in our quest to maximize performance without increasing unit size or weight. Offering 5% more stabilizing power than the Seakeeper 10 and spooling up in just 18 minutes, it’s ideal for boats 50 to 62 feet.
The next generation of Seakeeper innovations introduces the most efficient and most effective gyrostabilizers ever built.
More stabilization. Smaller Package.
Ideal for Boats
Asymmetric Flywheel

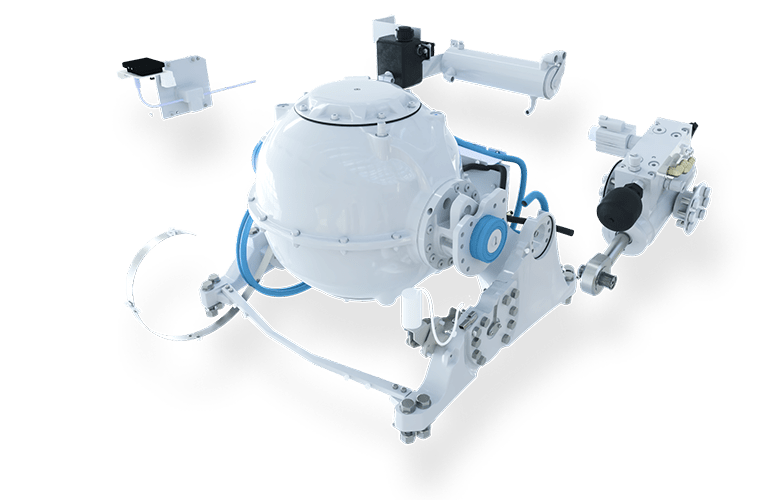

An all-new flywheel design features a deeper lower hemisphere, enabling the motor to be tucked inside the flywheel. This design reduces overall height and provides the most efficient flywheel shape to maximize performance per pound and footprint.
ConnectBox Integration
The ConnectBox integrates with compatible on-board MFDs, eliminating the need to install an additional display for the Seakeeper. The ConnectBox keypad also allows the operator to control the Seakeeper directly from the unit.

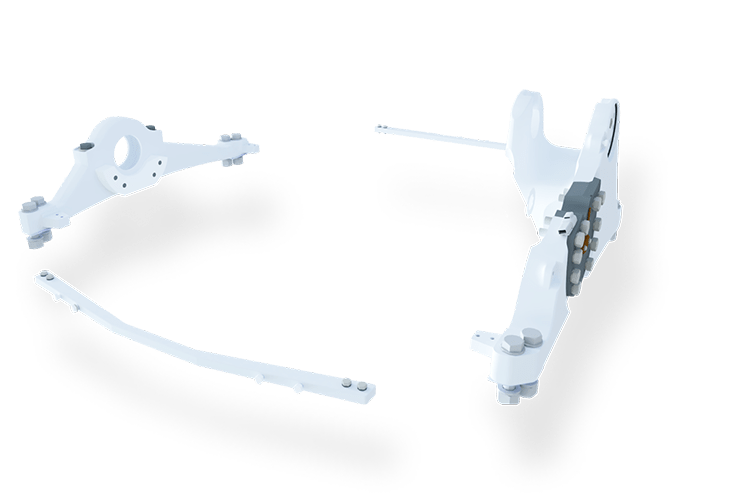

Single Cylinder Brake Arm
The single-cylinder brake design saves space, weight, and enhances reliability by eliminating hoses and connections. It requires no annual service and incorporates redundant safety mechanisms.
Asymmetric Flywheel
ConnectBox
Single-Cylinder Brake
Faster Installation
The new frame can be disassembled to allow for installation in locations where it otherwise may not have fit.
Economical Maintenance
Zinc-nickel plated components, a single-cylinder brake design, and a redesigned cooling system provide better protection and easier maintenance.
Easier Access
Fewer mounting bolts, greater access clearances, and quick-release top cover fasteners make service faster and easier.
Seakeeper 10.5
Specifications
| Max Rated Speed | 8,700 RPM |
| Angular Momentum at Max Rated RPM | 10,500 N-m-s |
| Spool-up Time to Max Rated RPM | 39 minutes (8,700 RPM) |
| Spool-up Time to Stabilization | 18 minutes (5,220 RPM) |
| Power Consumption | |
| Spool-Up Power | 4,000 Watts Max |
| Operating Power | 1100 – 2600 Watts |
| Operating Power Input | 220 VAC @ 20 Amps (50/60 Hz, Single Phase) |
| Control Power | 240 Watts Max |
| Control Power Input | 24 VDC @ 10 Amps Max |
| Seawater Power Input | 24 VDC @ 10 Amps Max |
| Envelope Dimensions | 30.95 L x 34.88 W x 23.78 H (inches) 0.786 L x 0.886 W x 0.604 H (meters) |
| Weight | 1,288 lbs (584 kg) |
| Noise Output | ~72 dB @ 3.3 feet (1 meter) |
| Seawater Supply to Heat Exchanger | 4.5 GPM (17 LPM) Minimum 6.0 GPM (22.7 LPM) Maximum |
| Ambient Air Temperature | 32° – 140° F (0° – 60° C) |
BETTER
TOGETHER
A Seakeeper is great, but coupled with a Seakeeper Ride, it’s even better. Together, they form one unified intelligent system that actively communicates and adapts its control decisions in real time to deliver unparalleled underway pitch, roll, and yaw stabilization.
Seakeeper Warranty
To ensure peace of mind, all Seakeeper products come
with a multi-year factory warranty.
