Crafted for 65’-75’ boats, up to 56 tons, the Seakeeper 18 is designed to eliminate up to 95% of boat roll. The Seakeeper 18 is completely internal, requires only modest electrical power, and can be installed virtually anywhere on board.$145,700 (not including installation)
~ 23' - 30'
~ 31' - 35'
~ 36' - 39'
~ 40' - 45'
~ 46' - 52'
~ 50' - 59'
~ 60' - 69'
~ 65' - 75'
~ 70' - 84'
~ 85' +
|Weight||2,460 (1,116 kg)|

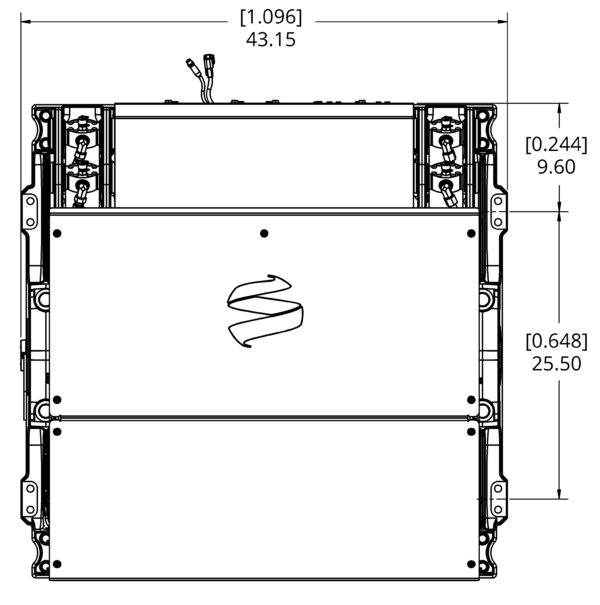

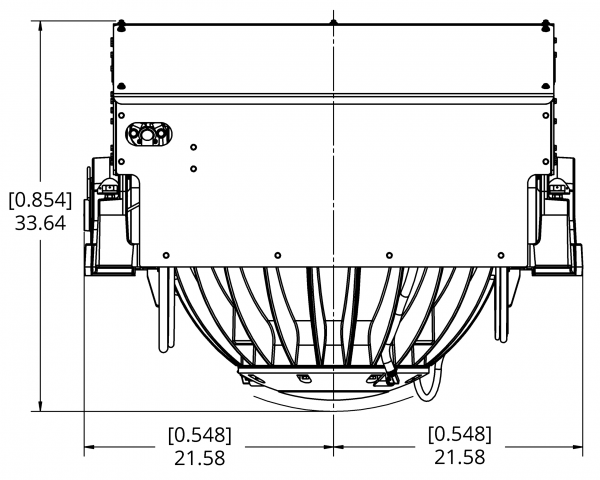

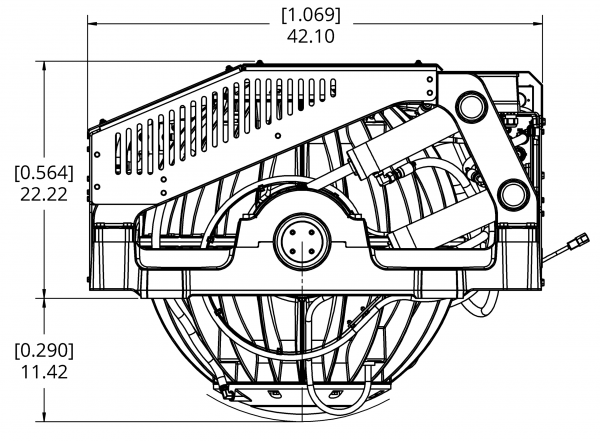

|Dimensions||42.6 L x 43.2 W x 32.9 H (inches)|
|1.08 L x 1.10 W x 0.84 H (meters)|
Our patented cooling system allows the flywheel to spin at an extremely high rate of speed, providing ultimate performance in the smallest and lightest package possible.
Seakeeper’s vacuum encapsulation enables the flywheel to spin roughly three times faster, cuts flywheel weight by two-thirds and halves power requirements. Moreover, because the critical components (flywheel, bearings, and motor) are sealed in a vacuum, they are isolated from the marine environment.
Seakeeper’s active control optimizes gyro torque, providing an unsurpassed level of performance. Unlike a passively controlled gyro, which must be turned off in the roughest conditions and/or at higher speeds, the Seakeeper is effective at all speeds and can be used in all sea conditions.
Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.
|Max Rated Speed||6,150 RPM|
|Angular Momentum at Max Rated RPM||18,000 N-M-S|
|Max Anti-Rolling Torque at Max Rated RPM||34,980 N-M|
|Spool-up Time to Max Rated RPM||45 minutes (6,150 RPM)|
|Spool-up Time to Stabilization||32 minutes (5,230 RPM)|
|Spool-Up Power||3700 Watts Max|
|Operating Power||1200 - 3700 Watts (Sea State Dependent)|
|AC Power Input||208 - 230 VAC, 50/60 Hz, Single Phase @ 30 Amps|
|Control Power||240 Watts|
|Control Power Input||24 VDC @ 10 Amps|
|Seawater Pump Power Input
Over Current Protection based on installed pump rating
|24 VDC @ 10 Amps Max|
|Seawater Supply to Heat Exchanger||30 LPM (8 GPM) Maximum|
|15 LPM (4 GPM) Minimum|
|Ambient Air Temperature||0° - 60° C (32° - 140° F)|
|Weight (Approximate)||2,460 lbs (1,116 kg)|
|Envelope Dimensions||42.6 L x 43.2 W x 32.9 H (Inches)
1.08 L x 1.10 W x 0.84 H (Meters)
|Noise Output||66 - 68 dBC at 1 meter|
To ensure peace of mind, all Seakeeper products come
with a multi-year factory warranty
