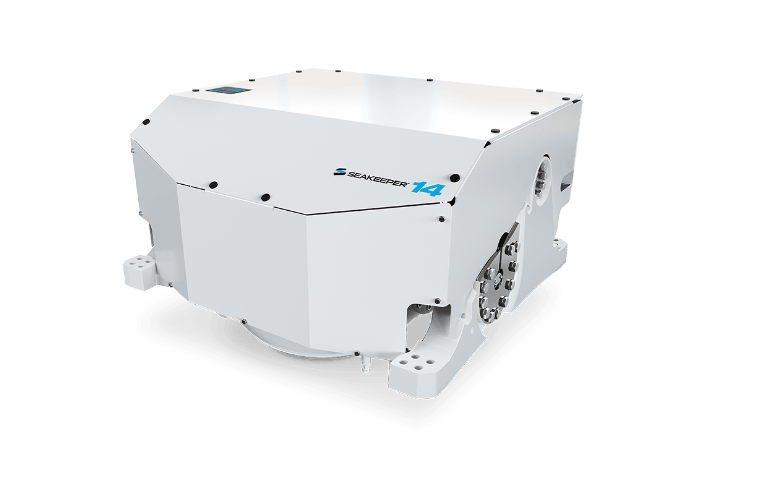

Seakeeper 14

The Seakeeper 14 bridges an important gap in the current model lineup between the Seakeeper 9 and the Seakeeper 18 with an innovative design that is 43% smaller and 33% lighter than the Seakeeper 18. Ideal for boats ~55-68 feet.

The next generation of Seakeeper innovations introduces the most efficient and most effective gyrostabilizers ever built.

More stabilization. Smaller Package.

Ideal for Boats

Play Video

Asymmetric Flywheel

An all-new flywheel design features a deeper lower hemisphere, enabling the motor to be tucked inside the flywheel. This design reduces overall height and provides the most efficient flywheel shape to maximize performance per pound and footprint.

ConnectBox Integration

The ConnectBox integrates with compatible on-board MFDs, eliminating the need to install an additional display for the Seakeeper. The ConnectBox keypad also allows the operator to control the Seakeeper directly from the unit.

Field Replaceable Bearings

Consistent with all Seakeeper models with angular momentum of 9000 NMS and greater, these new models are equipped with Field Replaceable Bearing (FRB) designs, offering greater in-field serviceability.

Single Cylinder Brake Arm

The single-cylinder brake design saves space, weight, and enhances reliability by eliminating hoses and connections. It requires no annual service and incorporates redundant safety mechanisms.

Asymmetric Flywheel


Field Replaceable Bearings

Single-Cylinder Brake

Faster Installation

The new frame can be disassembled to allow for installation in locations where it otherwise may not have fit.

Economical Maintenance

Zinc-nickel plated components, a single-cylinder brake design, and a redesigned cooling system provide better protection and easier maintenance.

Easier Access

Fewer mounting bolts, greater access clearances, and quick-release top cover fasteners make service faster and easier.

Seakeeper 14


Max Rated Speed 7,600 RPM
Angular Momentum at Max Rated RPM 14,000 N-M-S
Max Anti-rolling Torque at Max Rated RPM 36,650 N-m
Spool-up Time to Max Rated RPM 44 minutes (7,600 RPM)
Spool-up Time to Stabilization 24 minutes (5,700 RPM)
Power Consumption
Spool-Up Power 3,700 Watts Max
Operating Power 1,000 – 3,000 Watts (sea state dependent)
Operating Power Input 220 VAC @ 30 Amps (50/60 Hz, Single Phase)
Control Power 240 Watts Max
Control Power Input 24 VDC @ 10 Amps Max
Seawater Pump Power Input 24 VDC @ 10 Amps Max
Weight 1650 lb (748 kg)
Envelope Dimensions 34.62 L x 37.24 W x 26.95 H (inches) 0.879 L x 0.946 W x 0.685 H (meters)
Noise Output <72 dBC @ 3.3 feet (1 meter)
Seawater Supply to Heat Exchanger 4.5 GPM (17 LPM) Minimum 6.0 GPM (22.7 LPM) Maximum
Ambient Air Temperature 32F – 140F (0C – 60C)
