Seakeeper 6
The Seakeeper 6 packs a punch. Designed to
eliminate up to 95% of boat roll on boats up
to ~24 tons, vessels ~44-52 feet, the Seakeeper 6
provides 6,000 N-M-S of stabilizing power
in a compact, efficient package.
The Seakeeper 6 packs a punch. Designed to
eliminate up to 95% of boat roll on boats up
to ~24 tons, vessels ~44-52 feet, the Seakeeper 6
provides 6,000 N-M-S of stabilizing power
in a compact, efficient package.
~ 23' - 30'
~ 30' - 36'
~ 35' - 41'
~ 38' - 44'
~ 40' - 46'
~ 42' - 48'
~ 44' - 52'
~ 50' - 59'
~ 60' - 75'
~ 70' - 85'
~ 85' +
| Weight | 870 lbs (395 kg) |

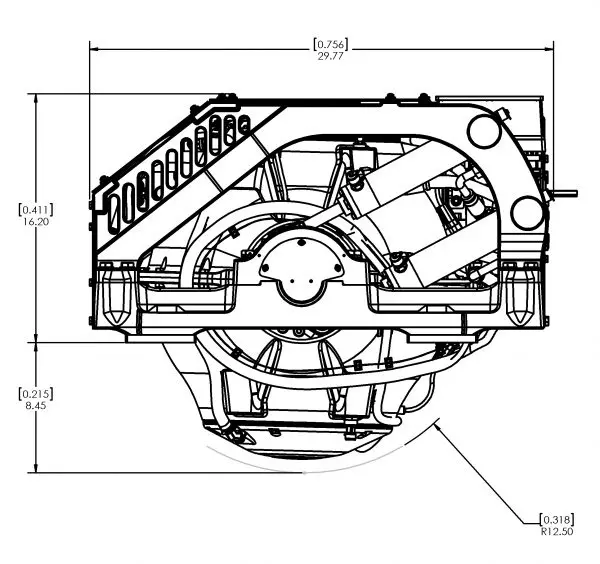

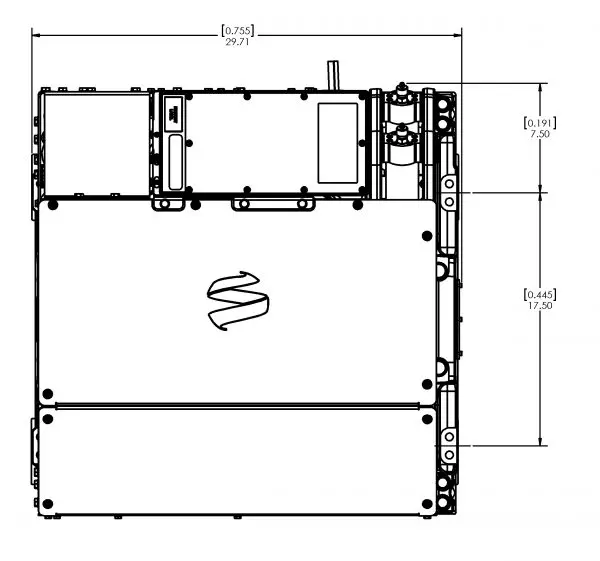

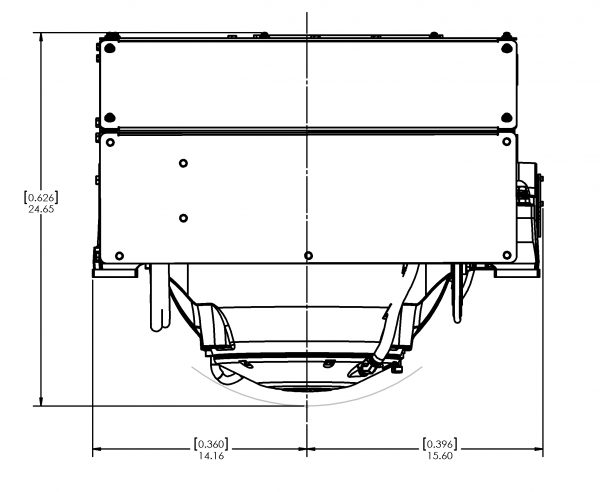

| Dimensions | 30.09 L x 29.72 W x 24.47 H (inches) |
| 0.764 L x 0.755 W x 0.621 H (meters) |
Our patented cooling system allows the flywheel to spin at an extremely high rate of speed, providing ultimate performance in the smallest and lightest package possible.
Seakeeper’s vacuum encapsulation enables the flywheel to spin roughly three times faster, cuts flywheel weight by two-thirds and halves power requirements. Moreover, because the critical components (flywheel, bearings, and motor) are sealed in a vacuum, they are isolated from the marine environment.
Seakeeper’s active control optimizes gyro torque, providing an unsurpassed level of performance. Unlike a passively controlled gyro, which must be turned off in the roughest conditions and/or at higher speeds, the Seakeeper is effective at all speeds and can be used in all sea conditions.
Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.
| Max Rated Speed | 9,700 RPM |
| Angular Momentum at Max Rated RPM | 6,000 N-M-S |
| Max Anti-rolling Torque at Max Rated RPM | 15,690 N-M |
| Spool-up Time to Max Rated RPM | 42 minutes (9,700 RPM) |
| Spool-up Time to Stabilization | 28 minutes (8,245 RPM) |
| Power Consumption | |
| Spool-Up Power | 2,300 Watts Max |
| Operating Power | 1,100 - 2,300 Watts (Sea State Dependent) |
| AC Power Input | 20 Amps @ 208-230 VAC
50/60 Hz, Single Phase |
| Control Power | 125 Watts |
| Control Power Input | 12 VDC @ 15 Amps Max |
| Seawater Pump Power Input Over Current Protection based on installed pump rating |
12 VDC @ 15 Amps Max |
| Weight | 870 lbs (395 kg) |
| Envelope Dimensions | 30.09 L x 29.72 W x 24.47 H (inches) 0.764 L x 0.755 W x 0.621 H (meters) |
| Noise Output | <72 dBC at 1 meter |
| Seawater Supply to Heat Exchanger | 2.5 GPM (9.5 LPM) minimum
8 GPM (30.3 LPM) maximum |
| Ambient Air Temperature | 32° - 140° F (0° - 60° C) |
To ensure peace of mind, all Seakeeper products come
with a multi-year factory warranty
